Alesis MMT-8 Clone

This time I developed a clone of my favorite sequencer: the Alesis MMT-8. You may be wondering what the point is today of using such an old and therefore limited design. The answer is: there is a point! The strength of this device lies in its simplicity, well-designed software, and access to all functions directly from the front panel. I truly recommend experiencing for yourself how well this was designed back then. It is worth mentioning that a considerable group of users still rely on this hardware, its market prices remain relatively high, and even one well-known company produces a fairly expensive functional clone in a small enclosure.

While developing this clone, I slightly simplified the original schematic, used several more modern components, and removed functions that are no longer necessary today, such as cassette memory dump support, start/stop footswitch support, and click output. At the same time, I added new features. Below are the main features of my device:

  • small, compact, high-quality enclosure,
  • Dimensions: 21 x 17 x 3 cm,
  • note memory increased eightfold (up to 88,000 notes maximum, divided into 8 banks of 11,000 notes each),
  • additional memory bank selection button (1 of 8), also supporting the memory formatting function,
  • additional memory bank display (1 of 8),
  • backlighting integrated into selected function buttons,
  • new built-in power supply based on a DC/DC converter,
  • high-quality LCD display,
  • power supply: 9…12 VDC (unlike the original, which uses an AC power supply),
  • low cost: $175.

Photos of the device and its internal construction are shown below. If you would like to buy one, just email me: info@synthrestorer.com or robert.wolgajew@gmail.com

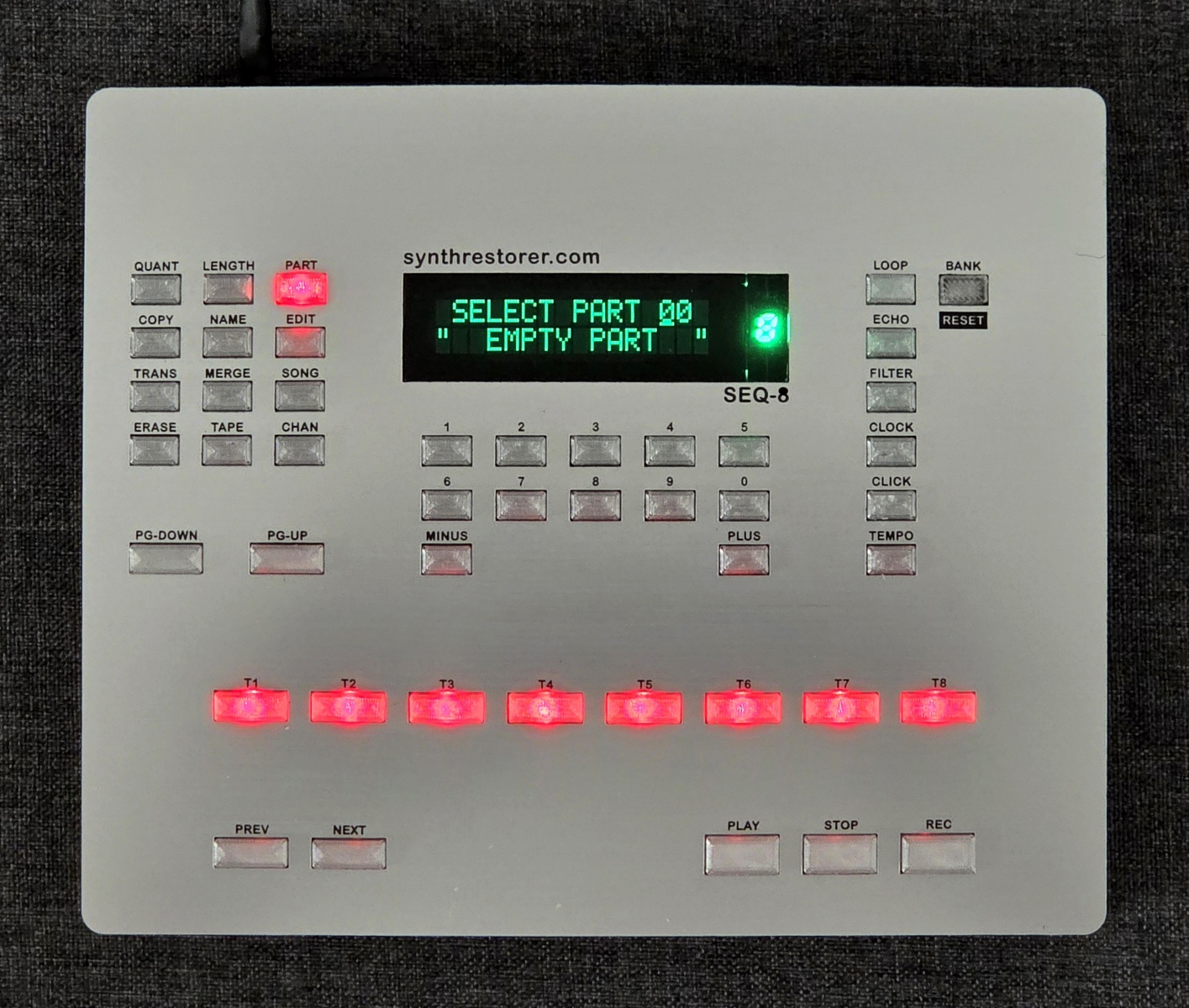

20260718_163618

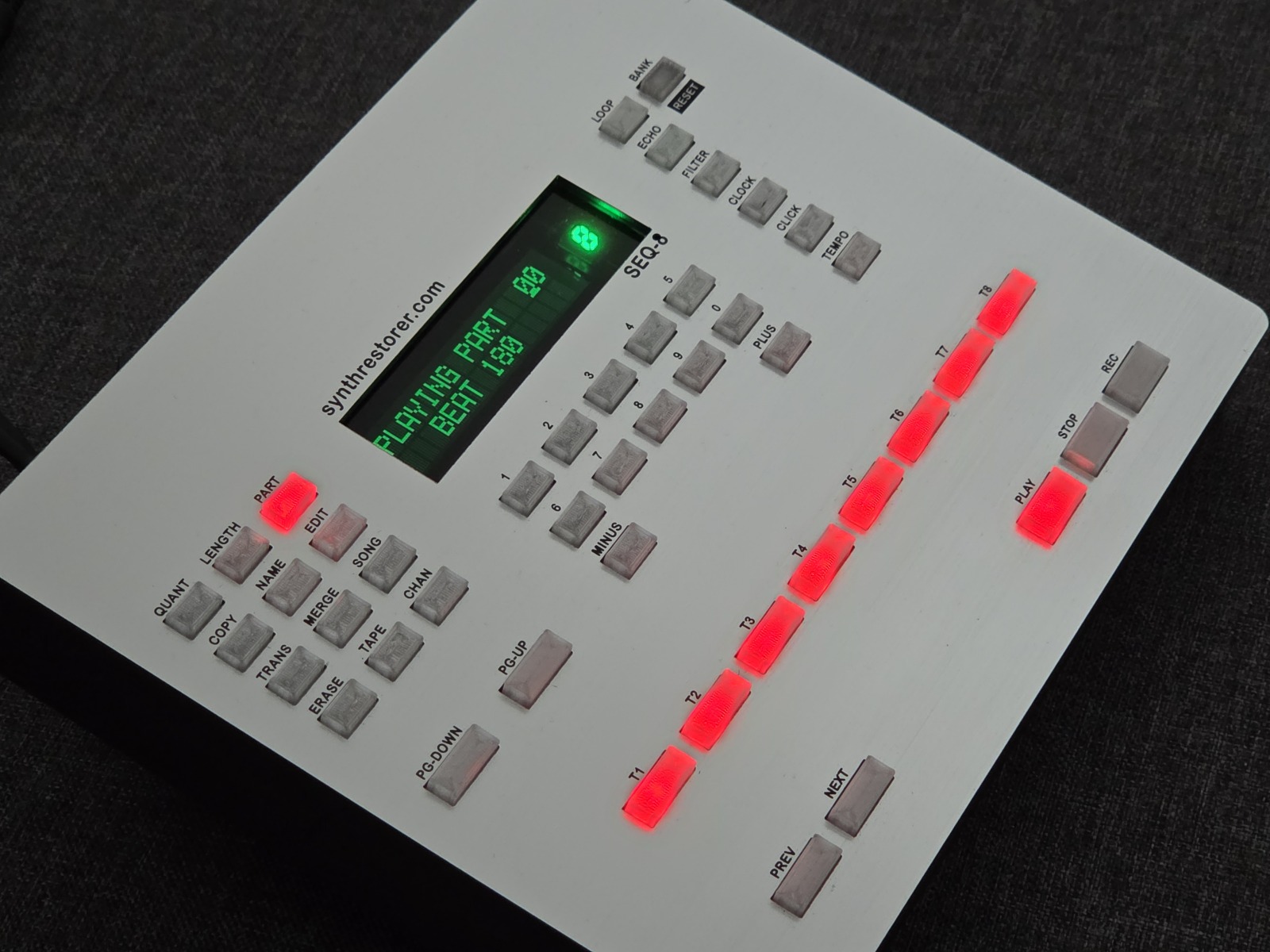

20260718_162829

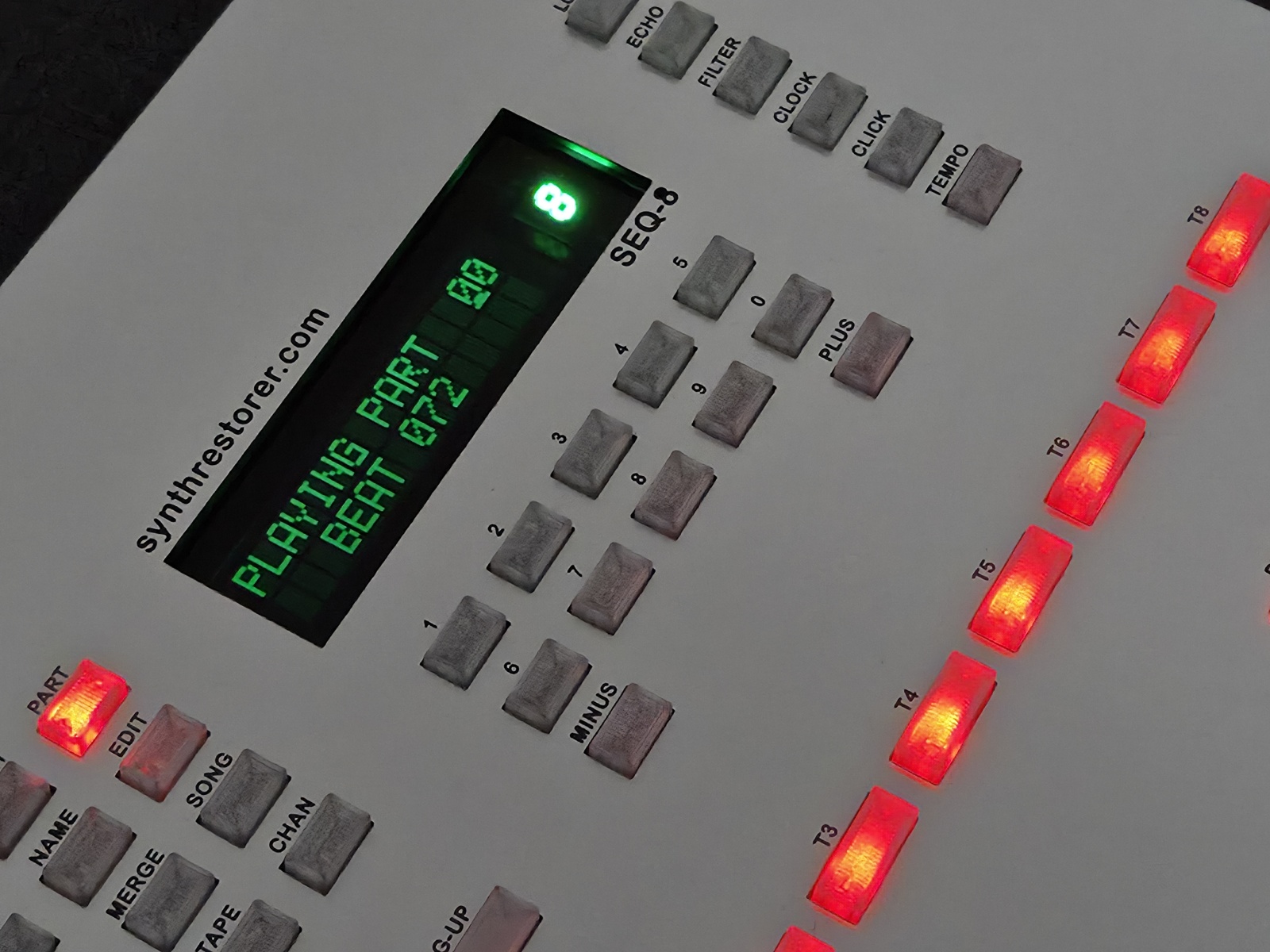

20260718_162735

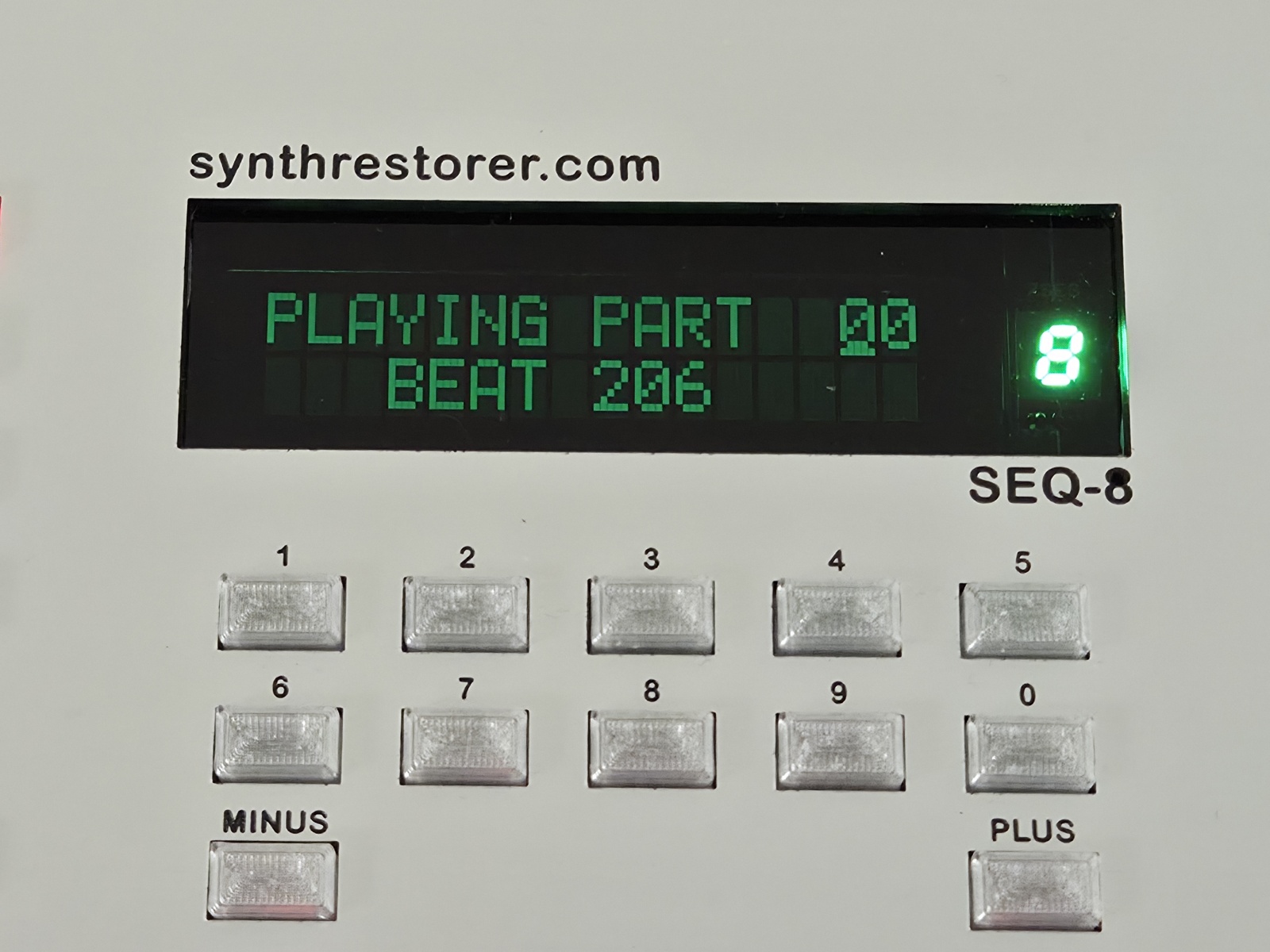

20260718_162842

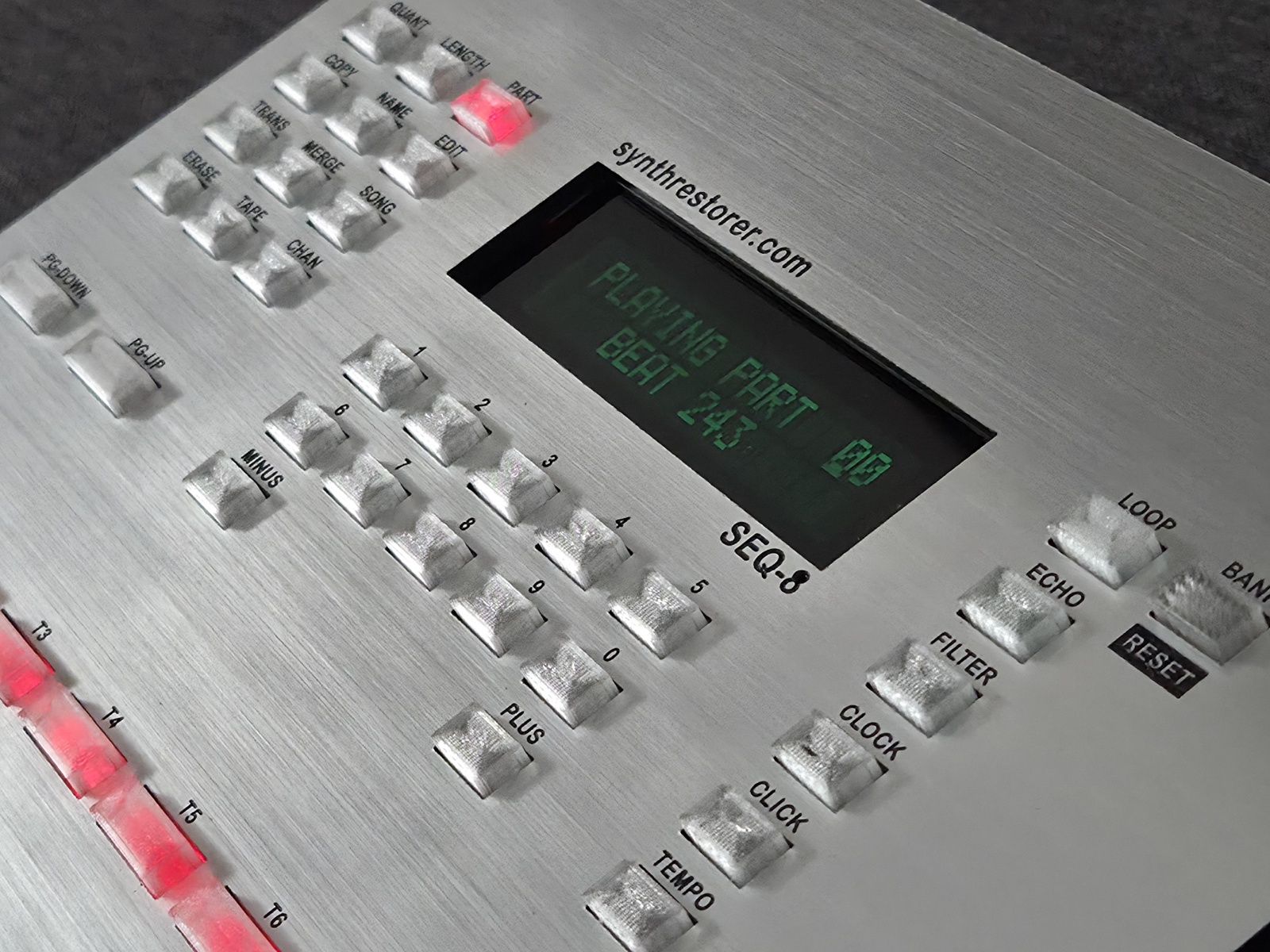

20260718_162900

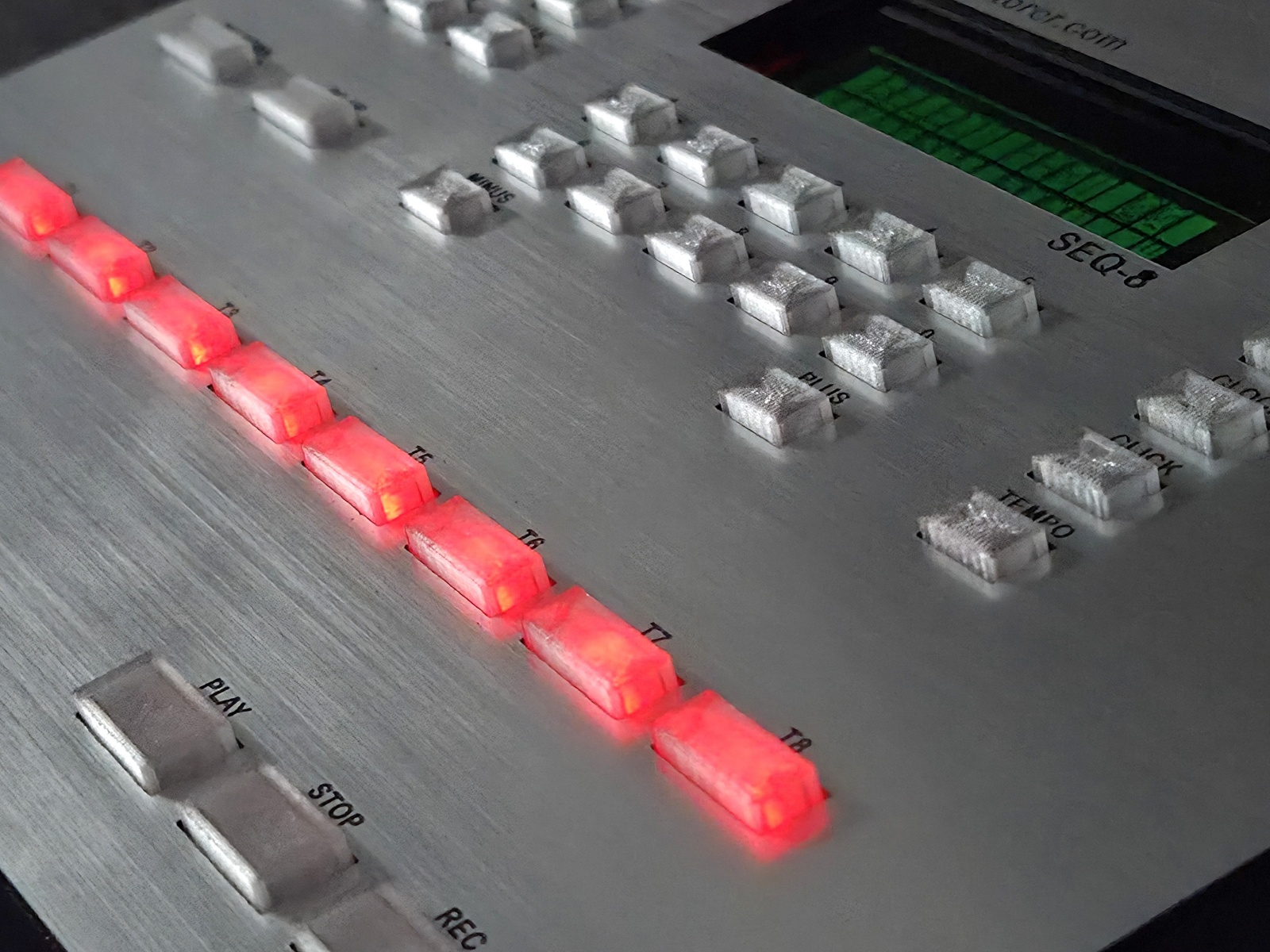

20260718_163022

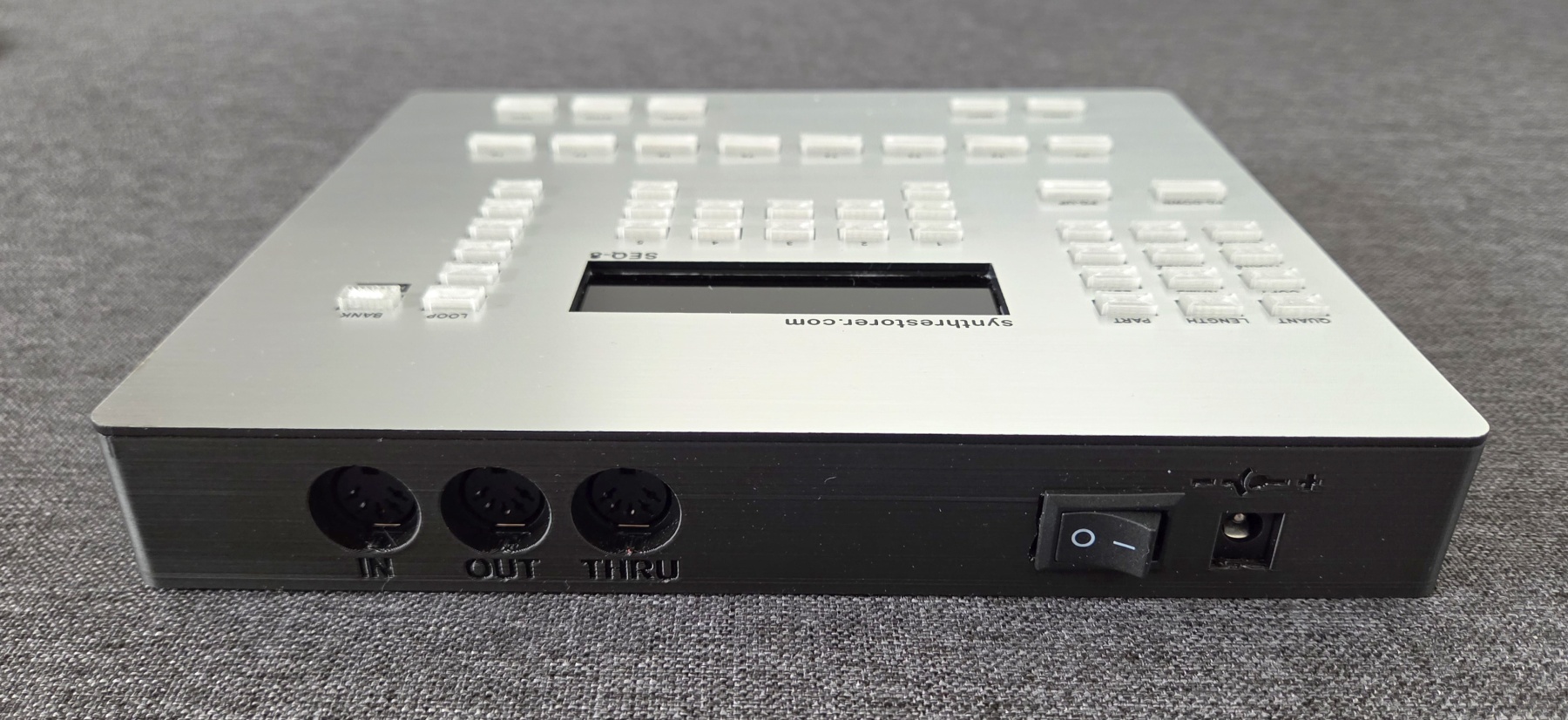

20260718_163206

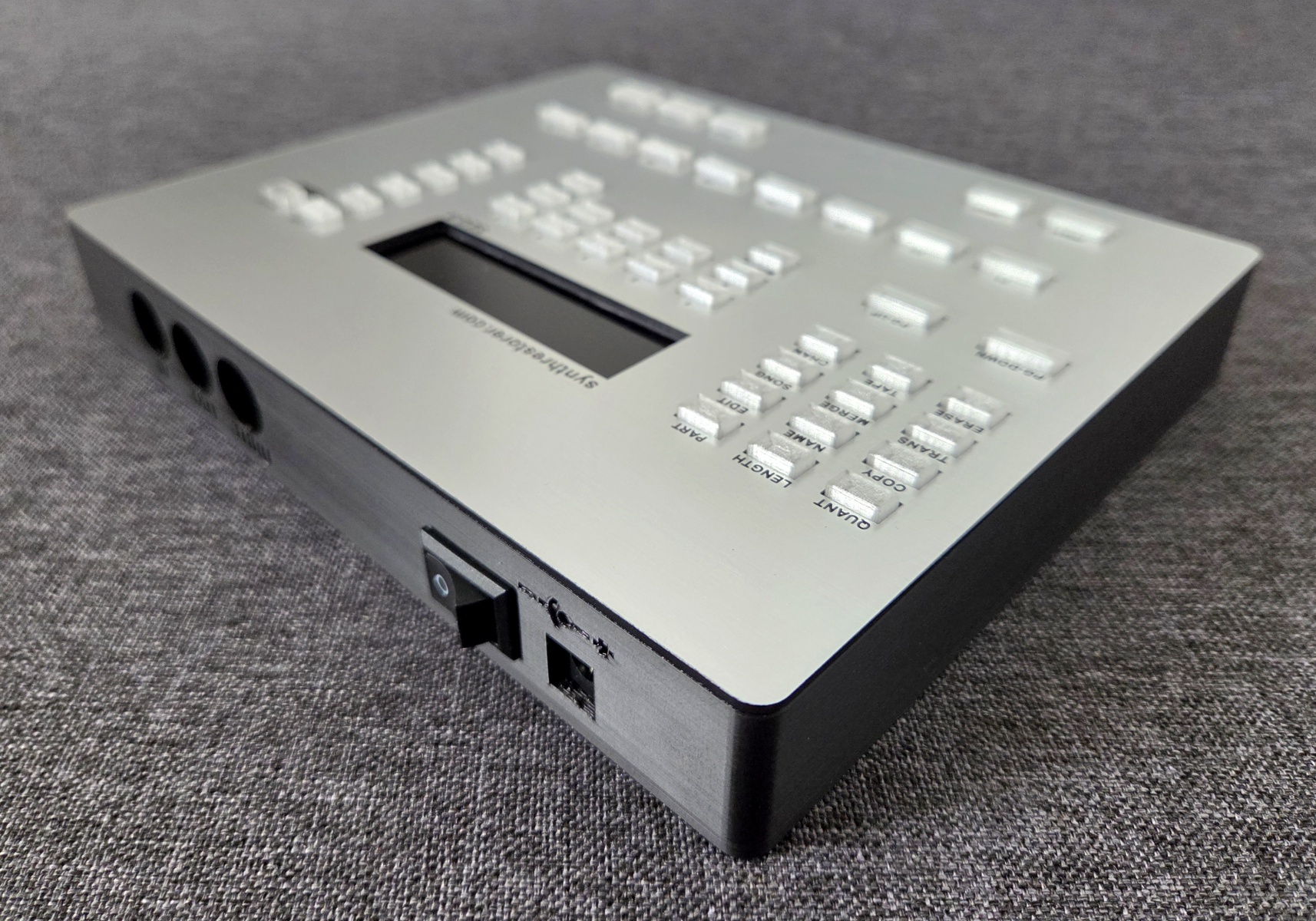

20260718_163234

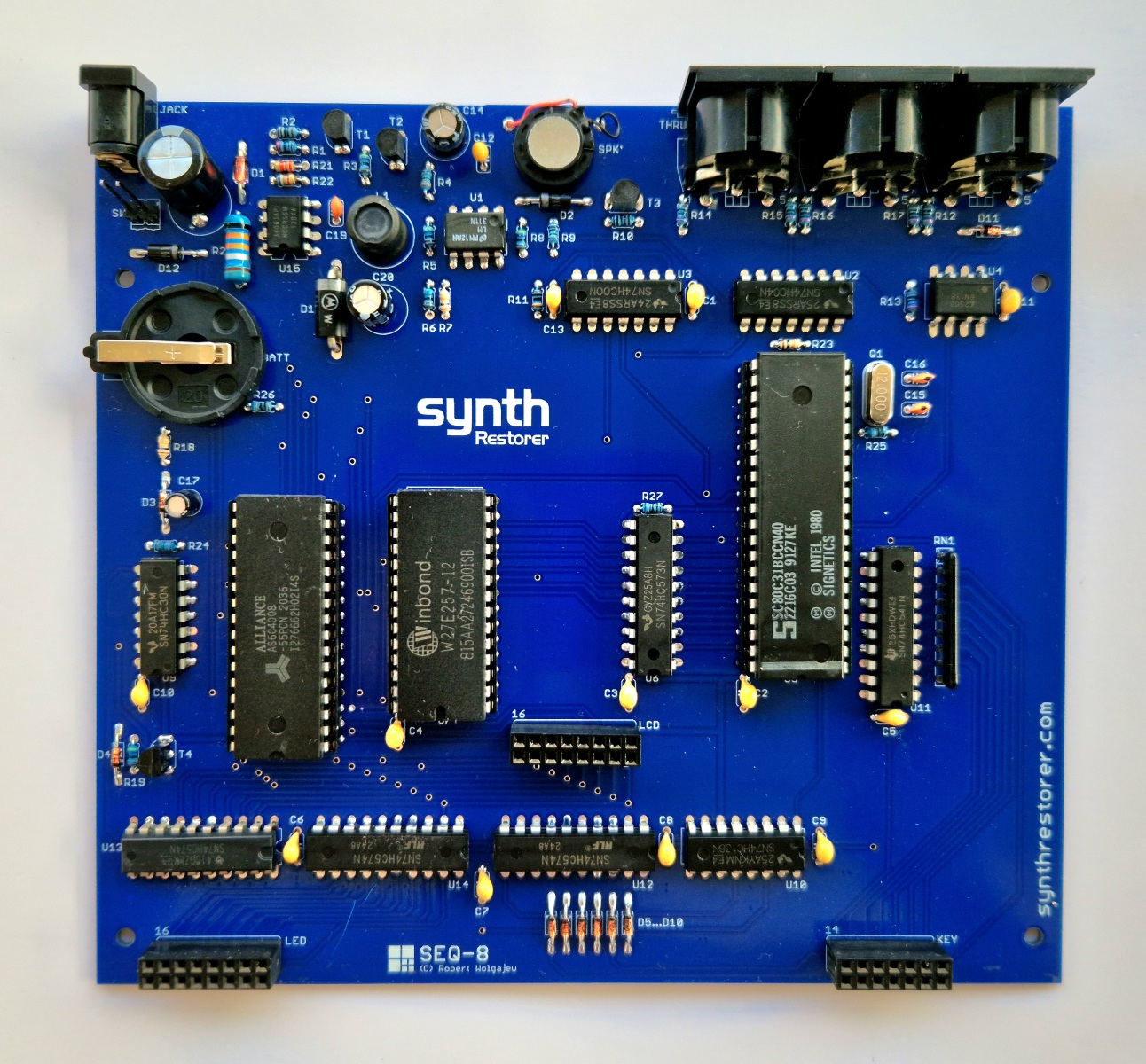

20260312_145836

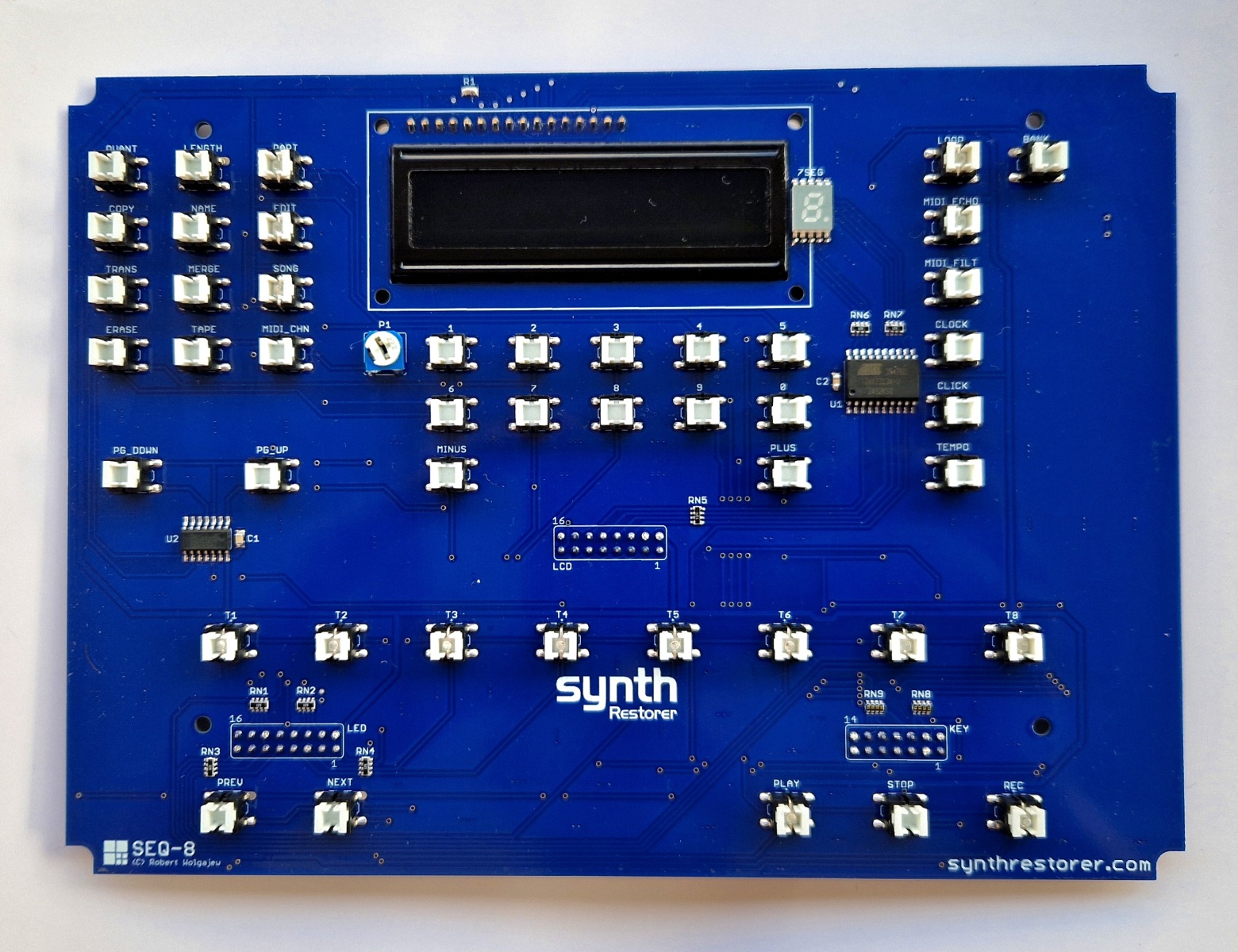

20260312_145759

Controls:

The operation of the device is analogous to the original, as it uses the same software. The only exception is the handling of the additional memory banks.

A short press of the BANK button switches the active memory bank, but this can only be done when the device is not playing or recording any MIDI data. It is recommended to turn the device off and on again after switching the memory bank to force a read of the entire RAM contents.

A long press of the BANK button initiates the memory bank formatting procedure, which in the original MMT-8 was initiated by pressing and holding (for 3 seconds) the PAGE UP, PAGE DOWN, and ERASE buttons while turning it on. This clone offers two options: the old-fashioned formatting method and using the BANK button, with the latter option not requiring turning the device off and on. After activating this function, the sequencer will reset and perform a RAM clearing procedure.

Please note that this procedure must be performed for each of the eight available memory banks to be ready to receive data.
