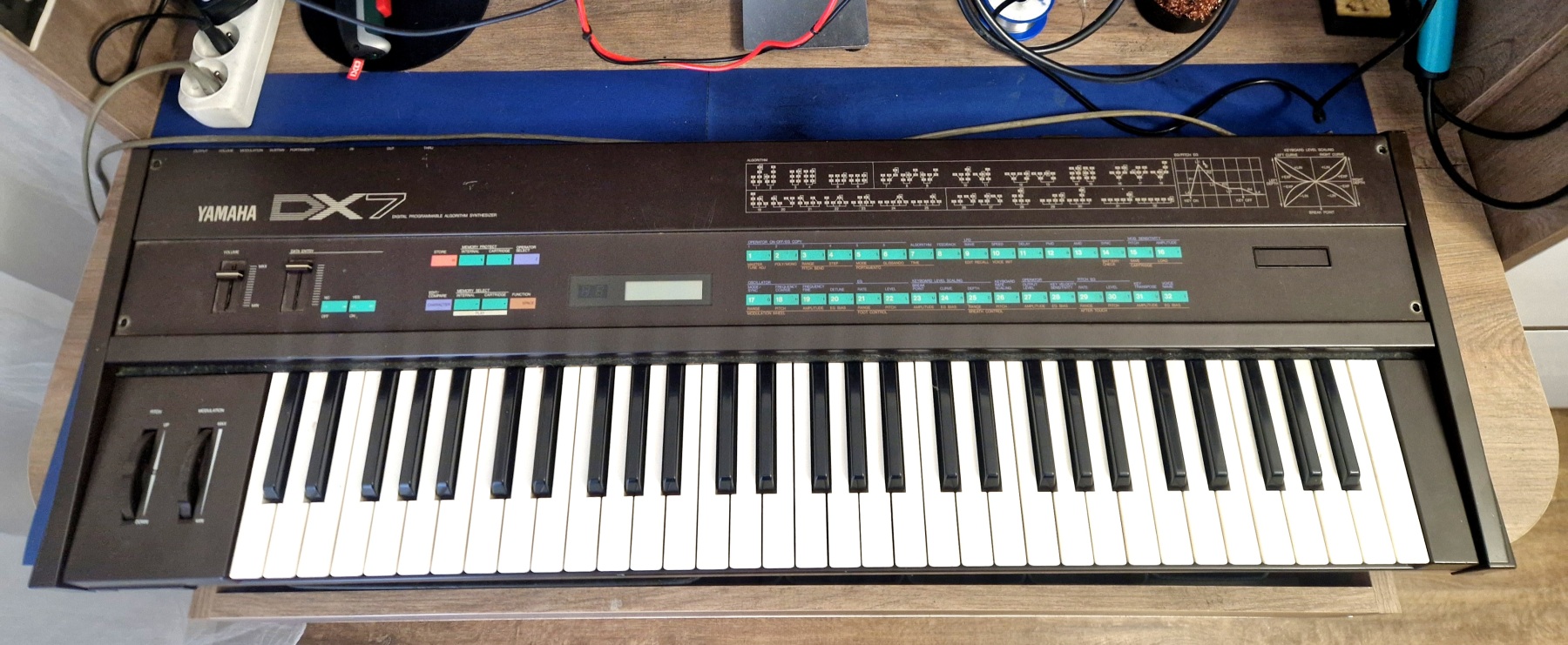

Yamaha DX7

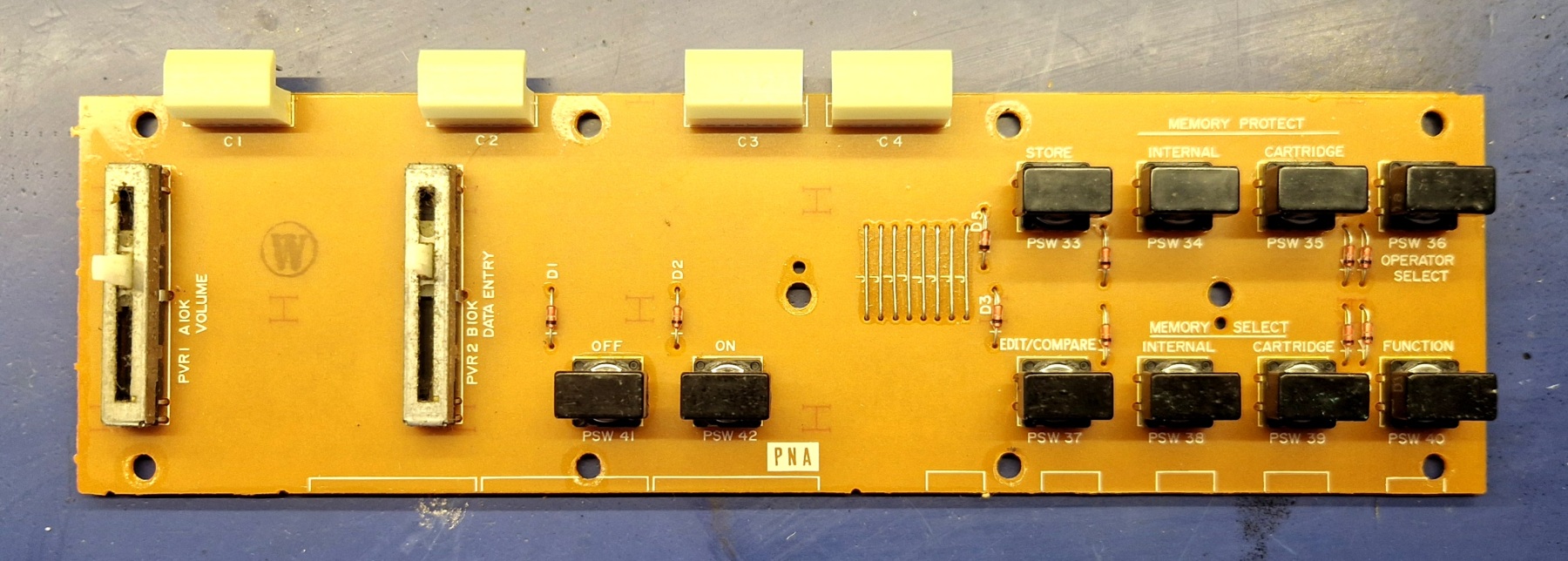

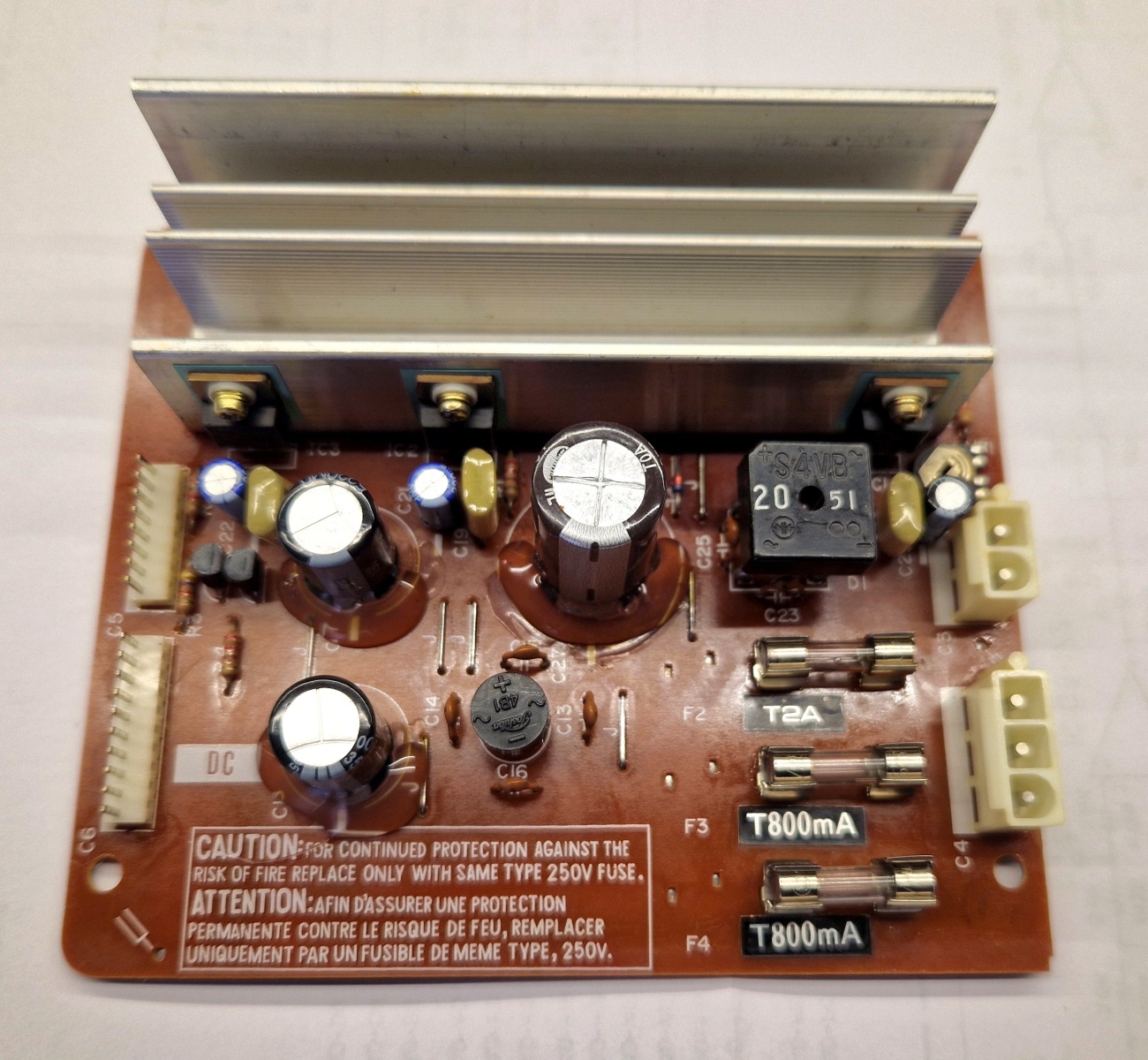

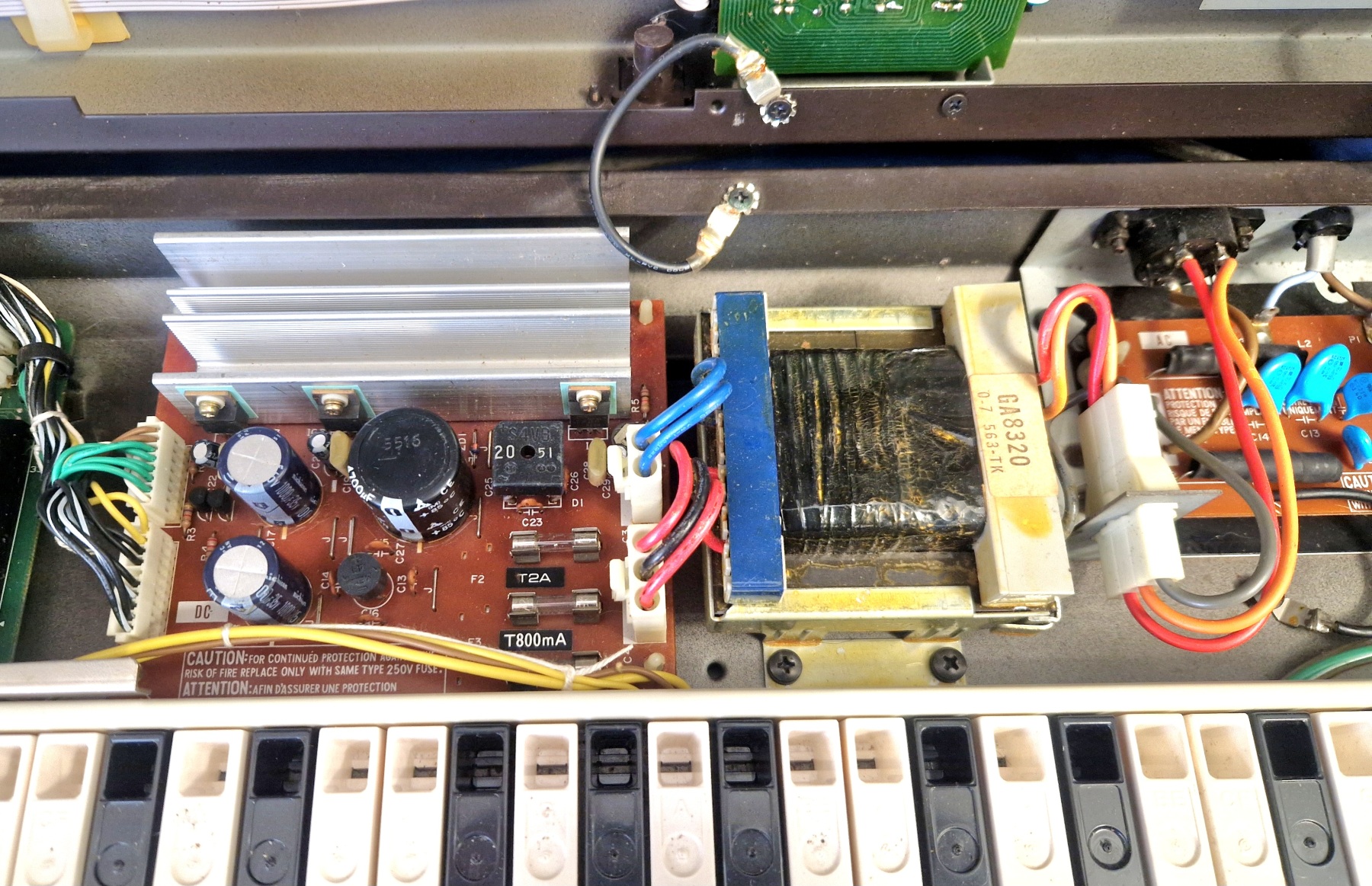

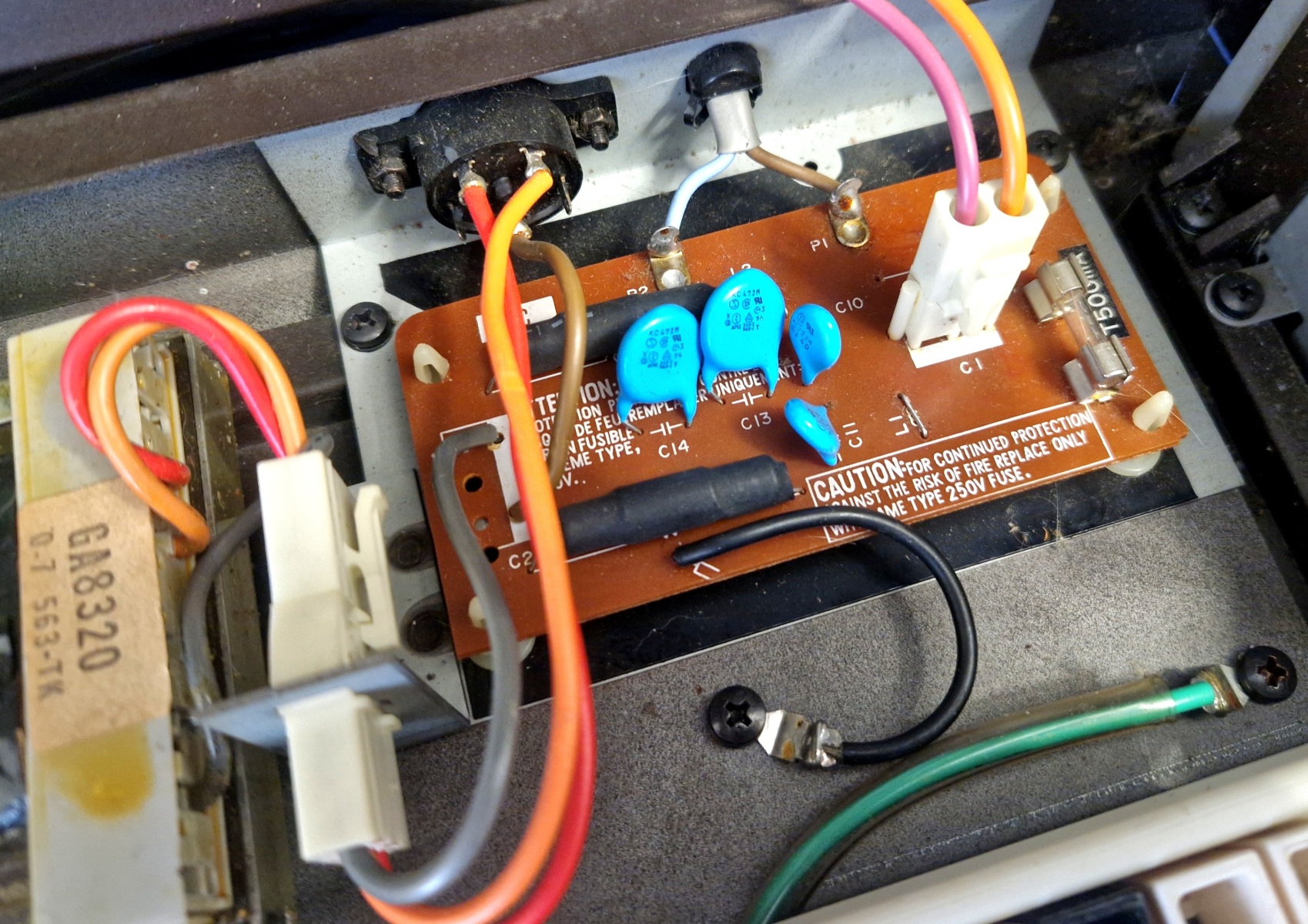

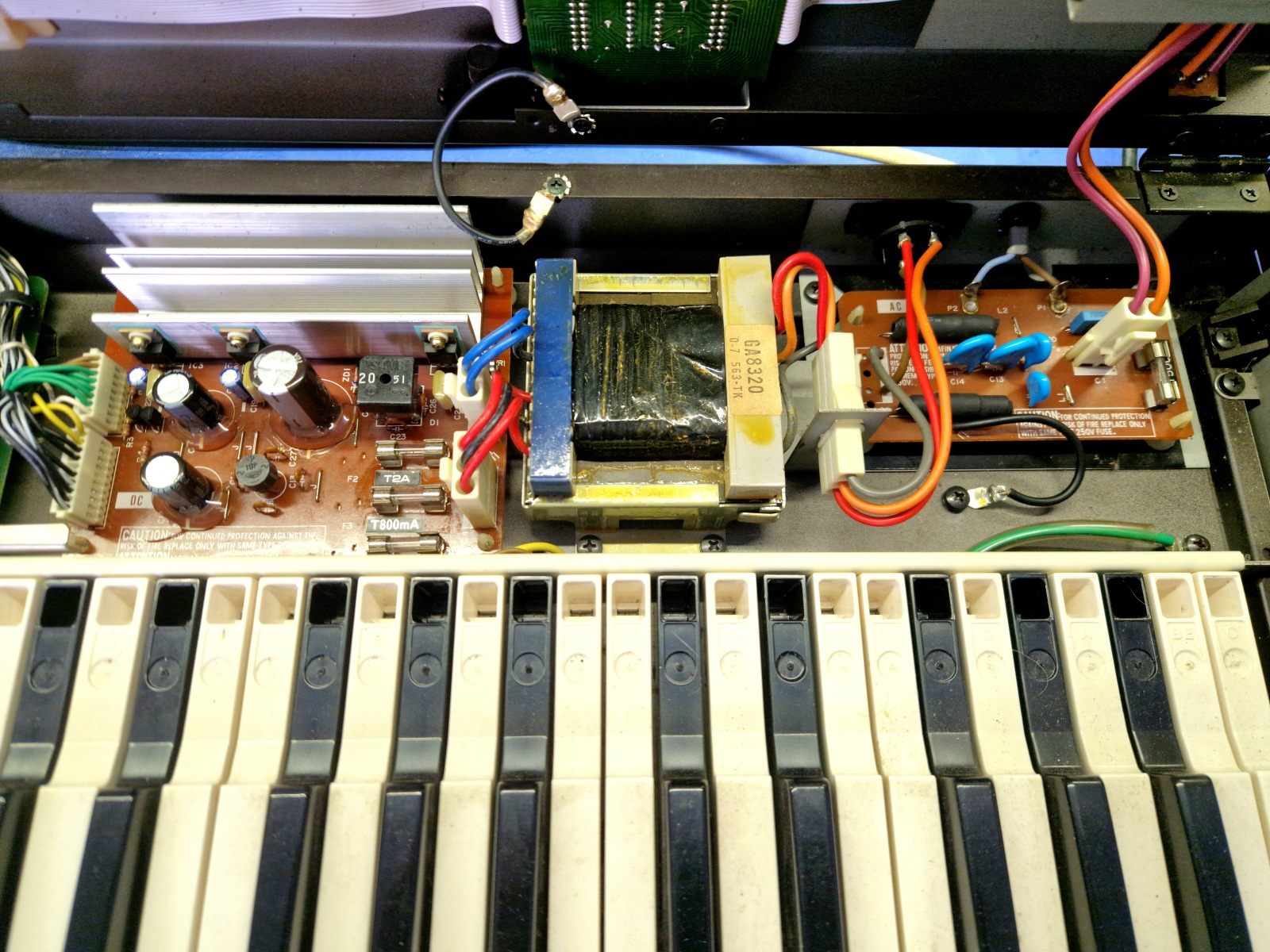

This is the second synthesizer of this type in my workshop – a true legend. This time, the burnt-out, infamous interference suppression capacitor in the mains filter was replaced, along with a complete PSU recap. Additionally, a crackling volume potentiometer was replaced. All other components of the unit were found to be in excellent condition and required no further intervention.

20260414_094018
20260414_094220
20260418_161613
20260414_094030
20260414_094040
20260417_154009
20260415_093615
